Security overview

Each Pinecone project has one or more API keys. To make calls to the Pinecone API, a user must provide a valid API key for the relevant Pinecone project.

You can manage API key permissions in the Pinecone console. For the roles you can assign to an API key and the operations each role covers, see Project roles.

SSO allows organizations to manage their teams' access to Pinecone through their identity management solution. Once your integration is configured, you can require that users from your domain sign in through SSO, and you can specify a default role for teammates when they sign up. SSO is available on Standard and Enterprise plans.

For more information, see configure single sign on.

Pinecone uses role-based access controls (RBAC) to manage access to resources.

Service accounts, API keys, and users are all principals. A principal's access is determined by the roles assigned to it. Roles are assigned to a principal for a resource, either a project or an organization. The roles available to be assigned depend on the type of principal and resource.

You can manage roles in the Pinecone console or programmatically with the Admin API. For more information, see Manage roles and access.

A service account can be assigned roles for the organization it belongs to, and any projects within that organization. For more information, see Organization roles and Project roles.

An API key can be assigned any project role except ProjectOwner, ProjectManager, and ProjectMember, and only for the project it belongs to. For more information, see API keys.

A user can be assigned roles for each organization they belong to, and any projects within that organization. For more information, see Organization roles and Project roles.

Audit logs provide a detailed record of user and API actions that occur within Pinecone.

Events are captured every 30 minutes and each log batch will be saved into its own file as a JSON blob, keyed by the time of the log to be written. Only logs since the integration was created and enabled will be saved.

Audit log events adhere to a standard JSON schema and include the following fields:

{
    "id": "00000000-0000-0000-0000-000000000000",
    "organization_id": "AA1bbbbCCdd2EEEe3FF",
    "organization_name": "example-org",
    "client": {
        "userAgent": "rawUserAgent"
    },
    "actor": {
        "principal_id": "00000000-0000-0000-0000-000000000000",
        "principal_name": "example@pinecone.io",
        "principal_type": "user", // user, api_key, service_account
        "display_name": "Example Person" // Only in case of user
    },
	"event": {
        "time": "2024-10-21T20:51:53.697Z",
        "action": "create",
        "resource_type": "index",
        "resource_id": "uuid",
        "resource_name": "docs-example",
        "outcome": {
            "result": "success",
            "reason": "", // Only displays for "result": "failure"
            "error_code": "", // Only displays for "result": "failure"
        },
        "parameters": { // Varies based on event
        }
	}
}

The following events are captured in the audit logs:

• Organization events
• Project events
• Index events
• User and API key events
• Security and governance events

Data within a Pinecone project can be encrypted using customer-managed encryption keys (CMEK). This allows you to encrypt your data using keys that you manage in your cloud provider's key management system (KMS). Pinecone supports CMEK using Amazon Web Services (AWS) KMS.

For Bring Your Own Cloud (BYOC), you use KMS on infrastructure in your own account rather than this console CMEK integration.

A backup is a static copy of your index that only consumes storage. It's a non-queryable representation of a set of records. You can create a backup of an index, and you can create a new index from a backup. This allows you to restore the index with the same or different configurations.

For more information, see Understanding backups.

Pinecone encrypts stored data using the 256-bit Advanced Encryption Standard (AES-256) encryption algorithm.

Pinecone uses standard protocols to encrypt user data in transit. Clients open HTTPS or gRPC connections to the Pinecone API; the Pinecone API gateway uses gRPC connections to user deployments in the cloud. These HTTPS and gRPC connections use the TLS 1.2 protocol with 256-bit Advanced Encryption Standard (AES-256) encryption.

Traffic is also encrypted in transit between the Pinecone backend and cloud infrastructure services, such as S3 and GCS. For more information, see Google Cloud Platform and AWS security documentation.

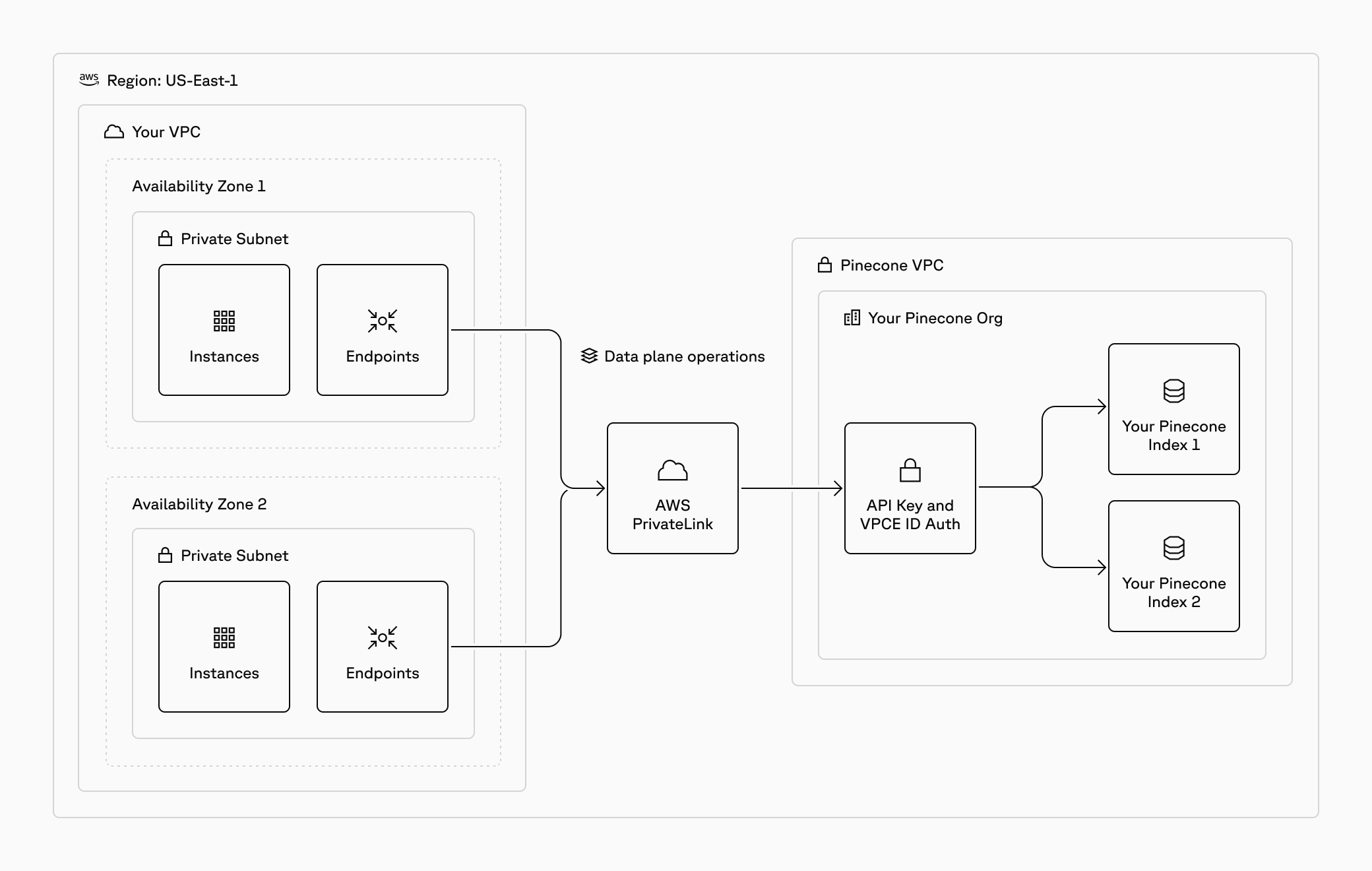

Use Private Endpoints to connect via AWS PrivateLink or Azure Private Link. This establishes private connectivity between your Pinecone serverless indexes and your cloud VPC/VNet while keeping traffic off the public internet.

Private Endpoints are additive to other Pinecone security features: data is also encrypted in transit, encrypted at rest, and an API key is required to authenticate.

The following Pinecone SDKs support the use of proxies:

• Python SDK
• Node.js SDK
